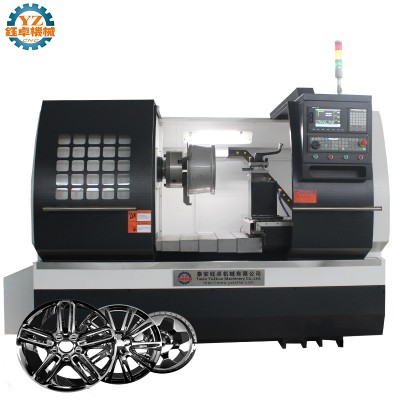

Wheel Repair CNC Lathe Machine

Model

WRC22

Max. swing over bed

Φ635mm (25’)

Max. swing over cross slide

Φ410mm

Max. size of alloy wheel

22’

Cross slide travel

330mm

Width of the rail

265mm

Length of the rail

1180mm

Size of the 3-jaw chuck

10’

Range of spindle speed

50~2500rpm

Spindle speed control

Automatic

Spindle bore

Φ60mm

Taper of spindle bore

MT6

Taper of spindle nose

A2-6

Max. size of tool post

25×25mm

Stations of tool carrier

4 position

Min. setting unit of motor

(Z) long   0.001mm

(X) cross  0.001mm

Moving speed of post

(Z) long    8m/min

(X) cross  4m/min

Motor power

5.5kw

Machine base

Whole cast iron base

Machine size (L*W*H)

2100*1600*1600mm

Net weight

1950kg
