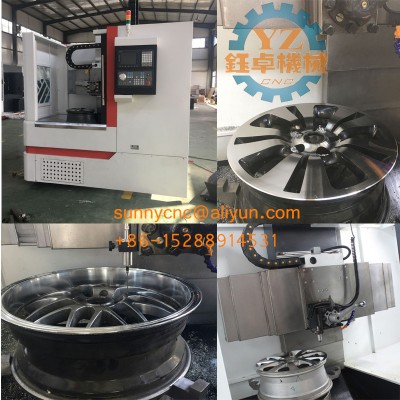

Bigger Vertical Wheel Repair CNC Lathe Machine
|
Model |
WRC28V |
|
Max. swing over bed |
820mm |
|
Max. process diameter |
720mm |
|
Chuck diameter |
400mm |
|
Spindle speed |
50-1500rpm |
|
Cutting speed |
0.1-1000mm/min |
|
Tool post vertical moving distance |
200mm |
|
Tool post horizontal moving distance |
-50~350mm |
|
X rapid speed |
8000mm/min |
|
Z rapid speed |
8000mm/min |
|
Tool post |
Manual 4 position tool post |
|
Arbor Section |
20x20mm |
|
Main motor power |
5.5kw |
|
Feed motor power |
X: 1.6kw/10nm Z: 1.6kw/10nm |
|
Coolant pump motor power/ flow rate |
0.9kw/ 25L/min |
|
Accuracy |
0.015 mm |
|
Repeatability |
0.012mm |
|
Weight |
3200kg |
|
Dimension (L*W*H) |
2400*1970*2270mm |
